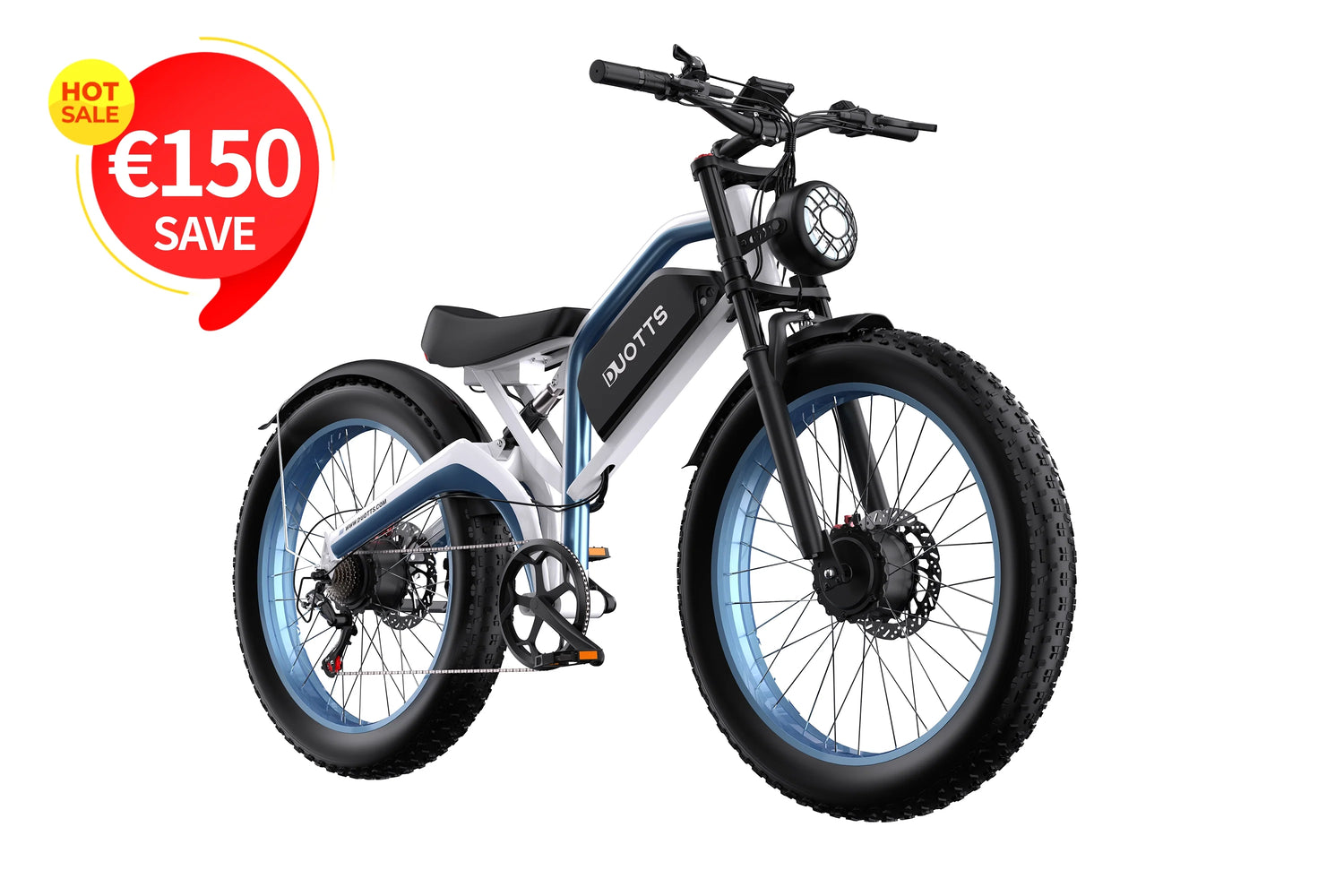

DUOTTS N26 Electric Bike

Description

FrameAll-aluminum alloy

BrakeLeft and right power off brake, front and rear disc oil brake, disc diameter 180mm

Front forkAluminum shoulder iron leg shock absorber front fork, front fork travel 60mm

RangeAbout 40-60 km in pure electric mode and 100-120 km in auxiliary mode.(Actual performance will vary depending on temperature, road conditions, rider weight, etc.)

Speed25 km/h (When the speed limit is set at 25, the motor will stop providing power at the specified maximum speed. You can still ride above the prescribed maximum speed with pure muscle strength. This limit is set according to local regulations)

Net WeightMaterial of 44kg

CertificateCE certification

Product size2000*730*1320mm (handlebar length: 73cm)

Package size1580*330*820mm

Tyre Size26*4.0 inches

Assist IntelligentLevel 0-5 pedal assist

Angle of climbMaximum climbing Angle 55°(Suitable for medium city slopes)

Rider Heights170-200cm

Weight Capacity150kg

Waterproof classIPX4(Light rain or rain sputtering can, but can not directly flush or rain)

Working Temperature- 10 ~ 40 ℃(Not recommended in bad weather)

Package contentThe whole vehicle removes the front wheel*1, front wheel*1, battery*1, front fender*1, headlight*1, mobile phone bag*1, charger, wheel reflector, tool kit combination

Motor48V 750W*2

Torque65 NM*2

BatterySamsung 48V 20AH

Battery Charger54.6V 2A

Charger Time8-10 hours

SensorSpeed sensor

ThrottleElectric half throttle

DisplayXF009 color screen with Bluetooth function,GPS and SIM card

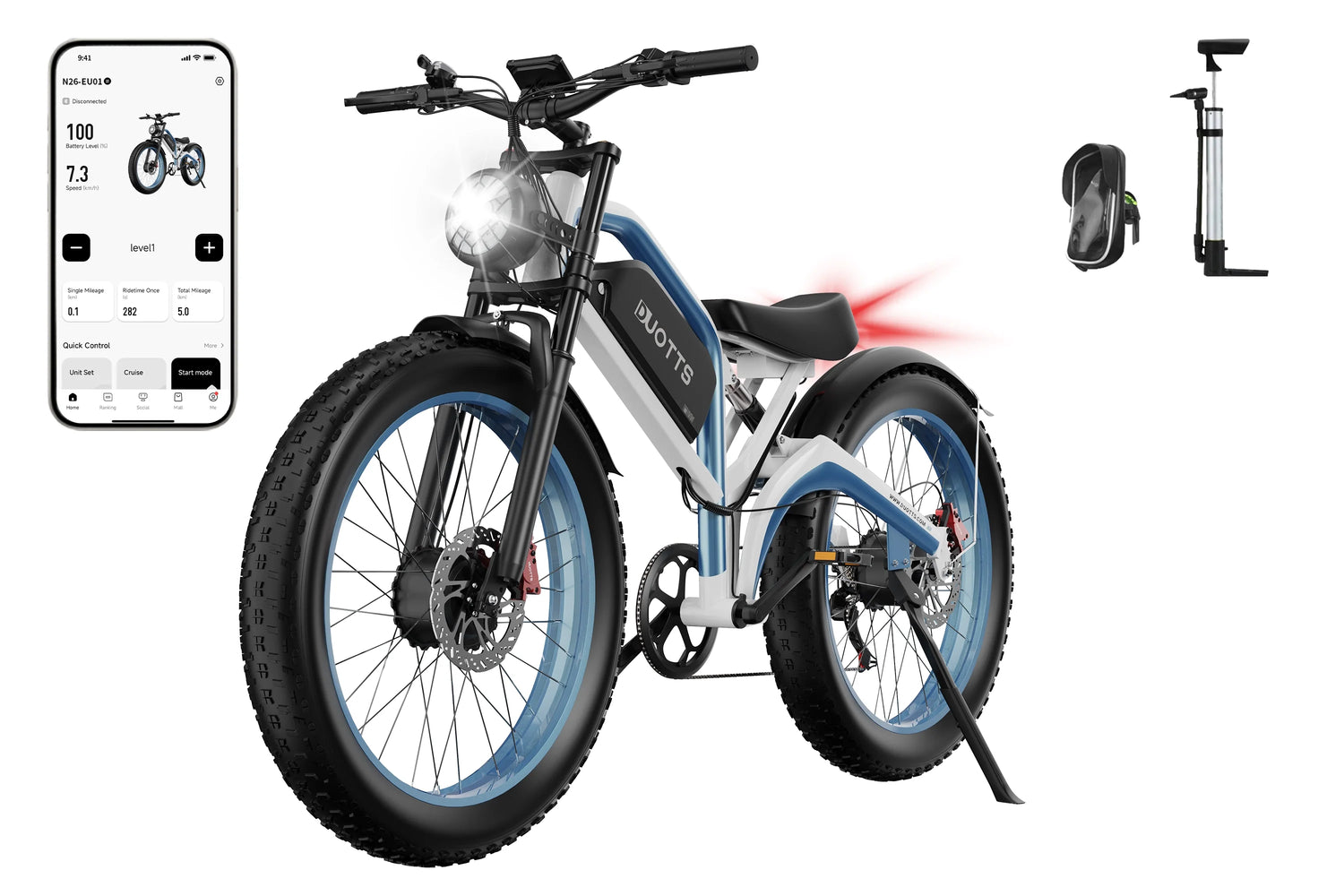

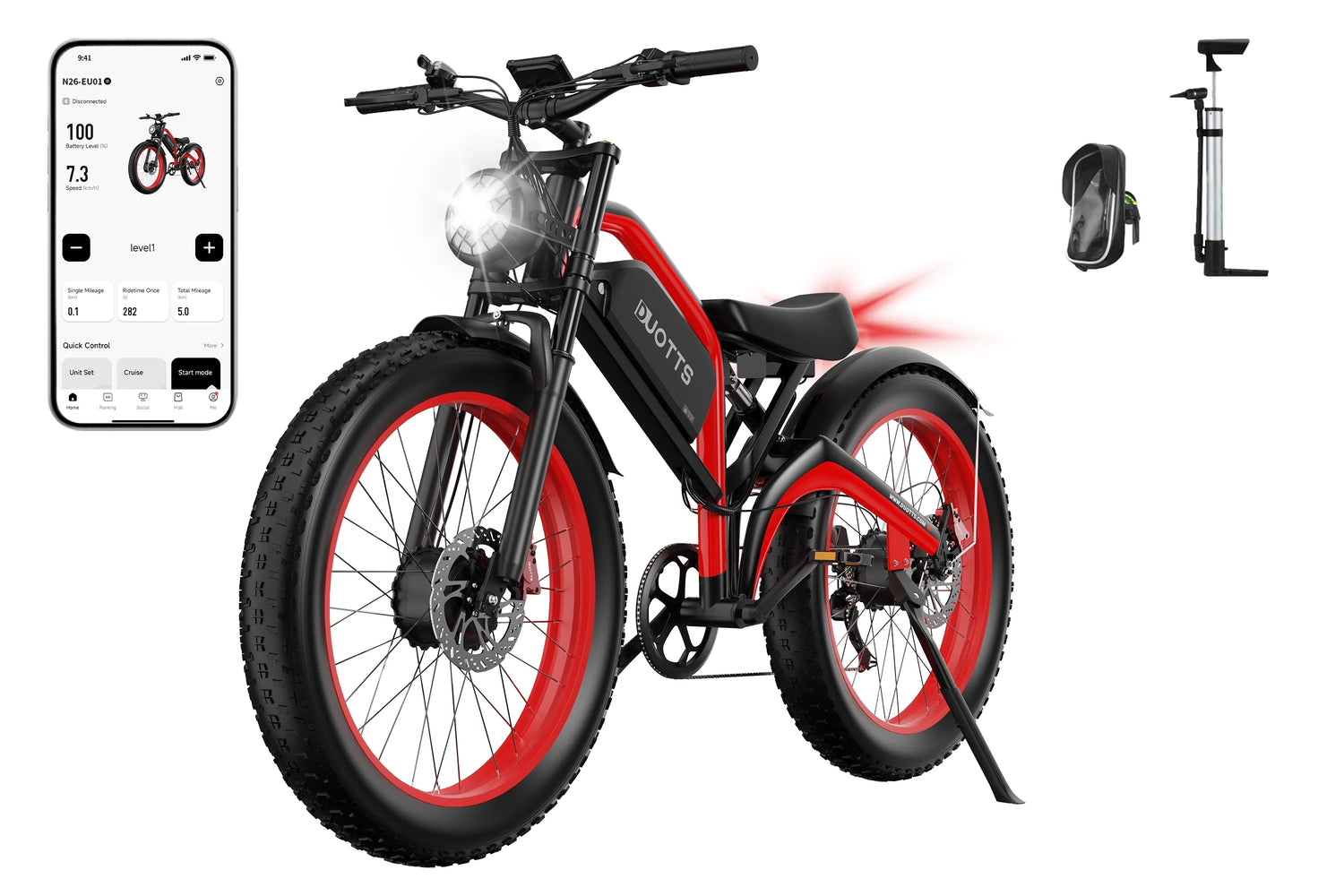

Smart ConnectSupport Bluetooth connection APP, can be connected through the DUOTTS APP

TransmissionShimano 7 speed

SuspensionFront + rear spring shock absorbers

BrakesLeft and right power off brake, front and rear disc hydraulic brake

Brake discDish diameter 180mm

HeadlightEquipped with stainless steel front frame light

Tail LightStainless steel rear taillights

PedalsMaterial Aluminum alloy with general reflector

FendersEquipped with front and rear plastic mud boards

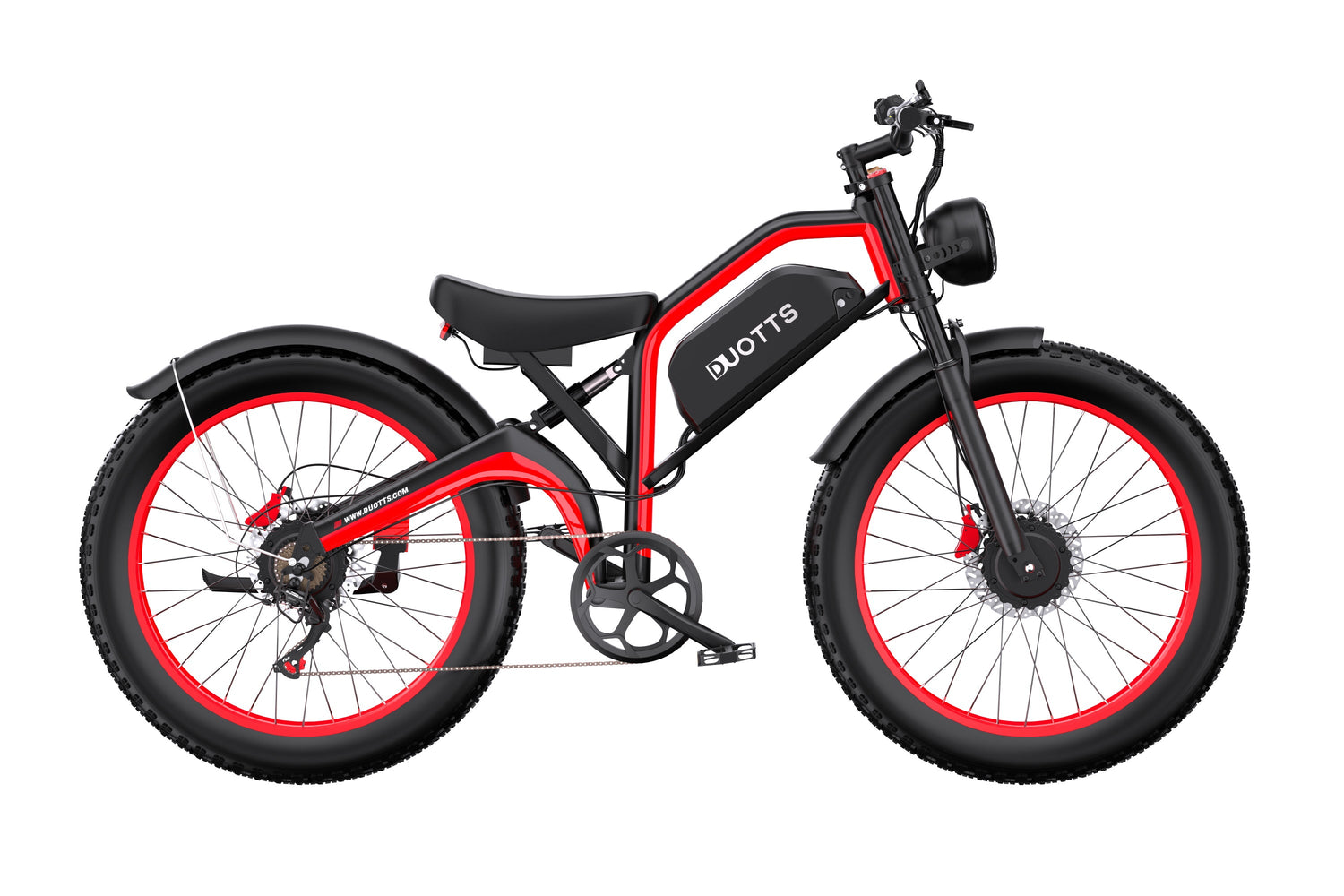

Exploring the N26 E-BIKE

Fresh Look in All-Terrain Electric Bike

The Duotts N26 electric bike with throttle blends traditional design with a fresh, dynamic aesthetic inspired by motorcycles. It's not just transportation—it's a statement of style and individuality. Get ready to turn heads and ride in style with the Duotts N26 high-speed electric bike.

Exceptional Suspension Performance & Stability

The Duotts N26 electric bike with throttle features a dual-shoulder design, enhancing rigidity and stability in the front fork. This innovative approach promotes precise handling and improved suspension performance of Duotts N26 all-terrain electric bike for a better ride.

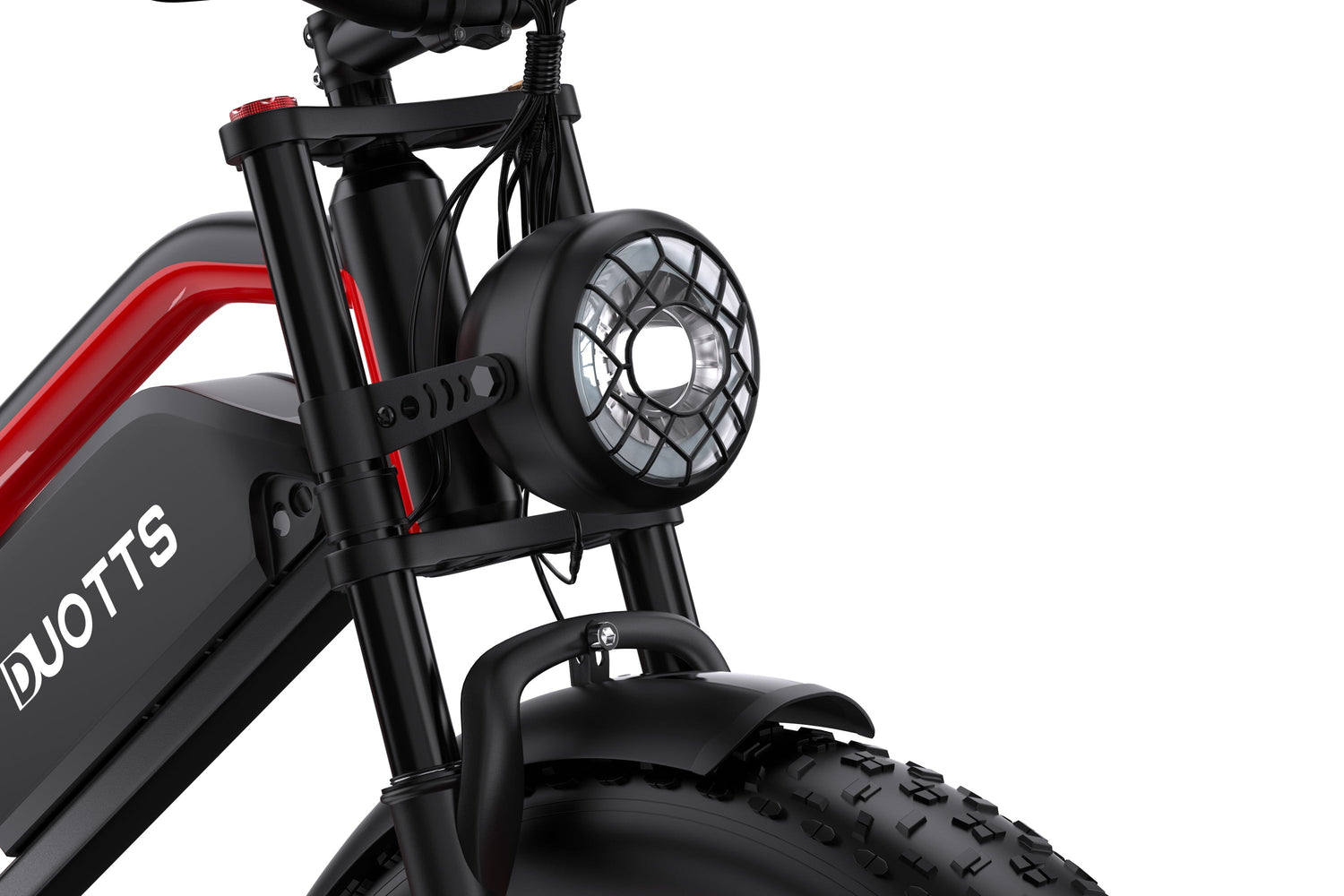

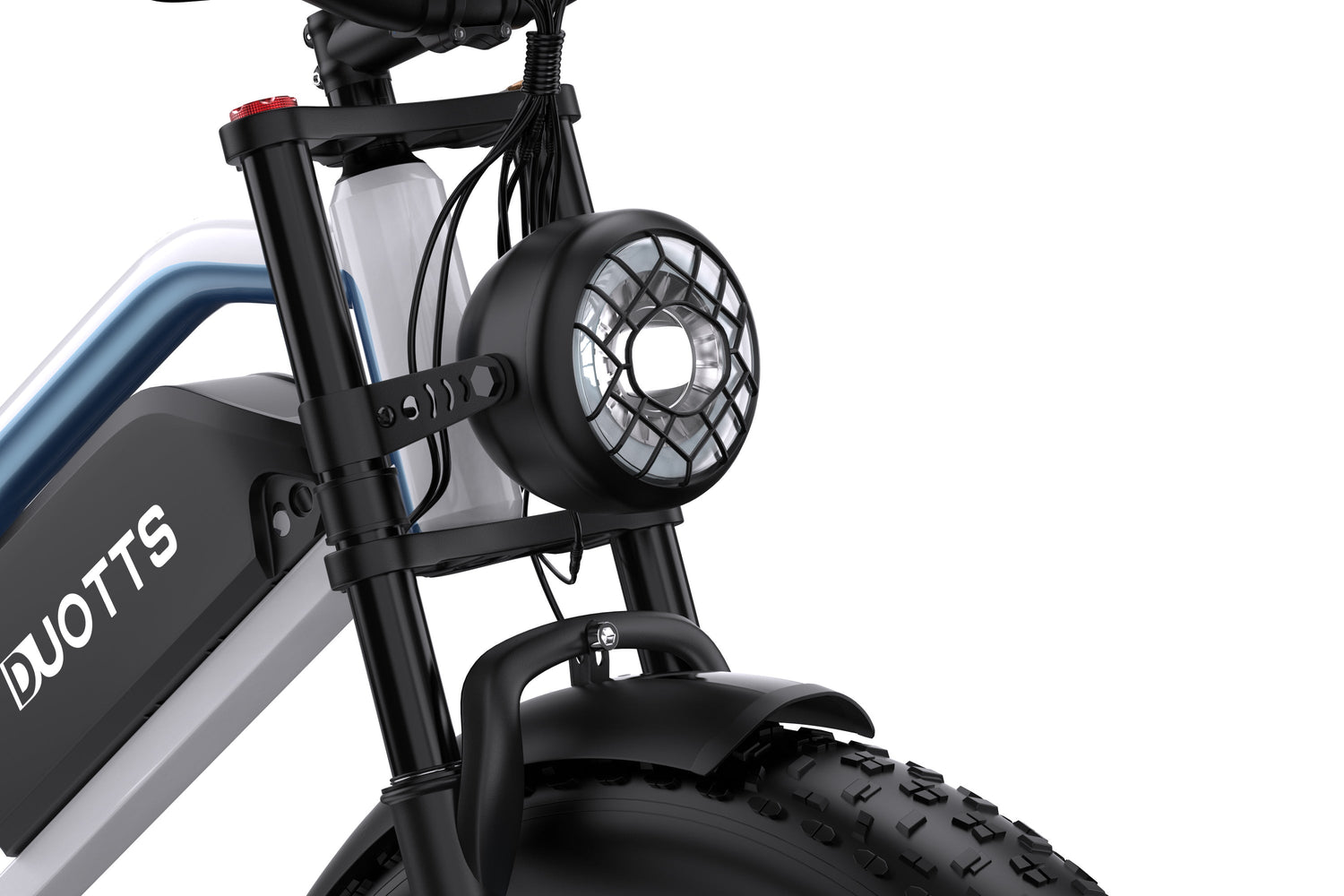

Even cooler exterior design

For those seeking cooler rides, the N26 features an innovative motorcycle-inspired design with stylish headlights, making you a trendsetter. About 40-60 km in pure electric mode and 100-120 km in auxiliary mode, its aluminum double-shoulder front fork ensures both coolness and comfort.

Dual motors for enhanced power

The N26 is equipped with 750W motors both front and rear, providing 1500W of power in dual-drive mode, offering both cool looks and powerful performance. With the push of a button, riders can switch between single-drive and dual-drive modes, easily adapting to various terrains.

Sturdy 26*4.0-inch fat tires

The 26*4.0-inch fat tires add off-road capability to the N26. With their generous width, these tires offer improved buoyancy and stability, ensuring safe riding even in powerful dual-drive mode.

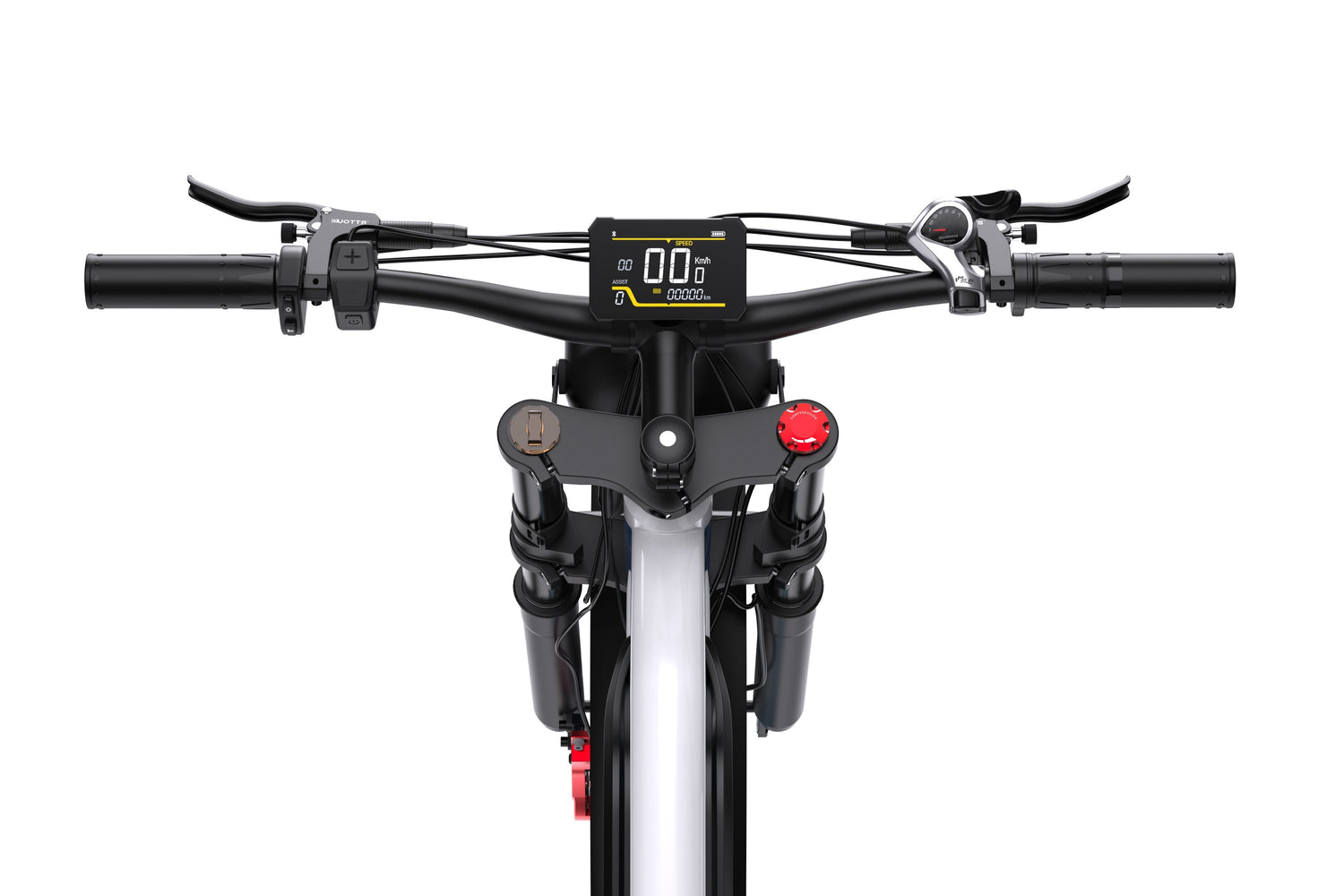

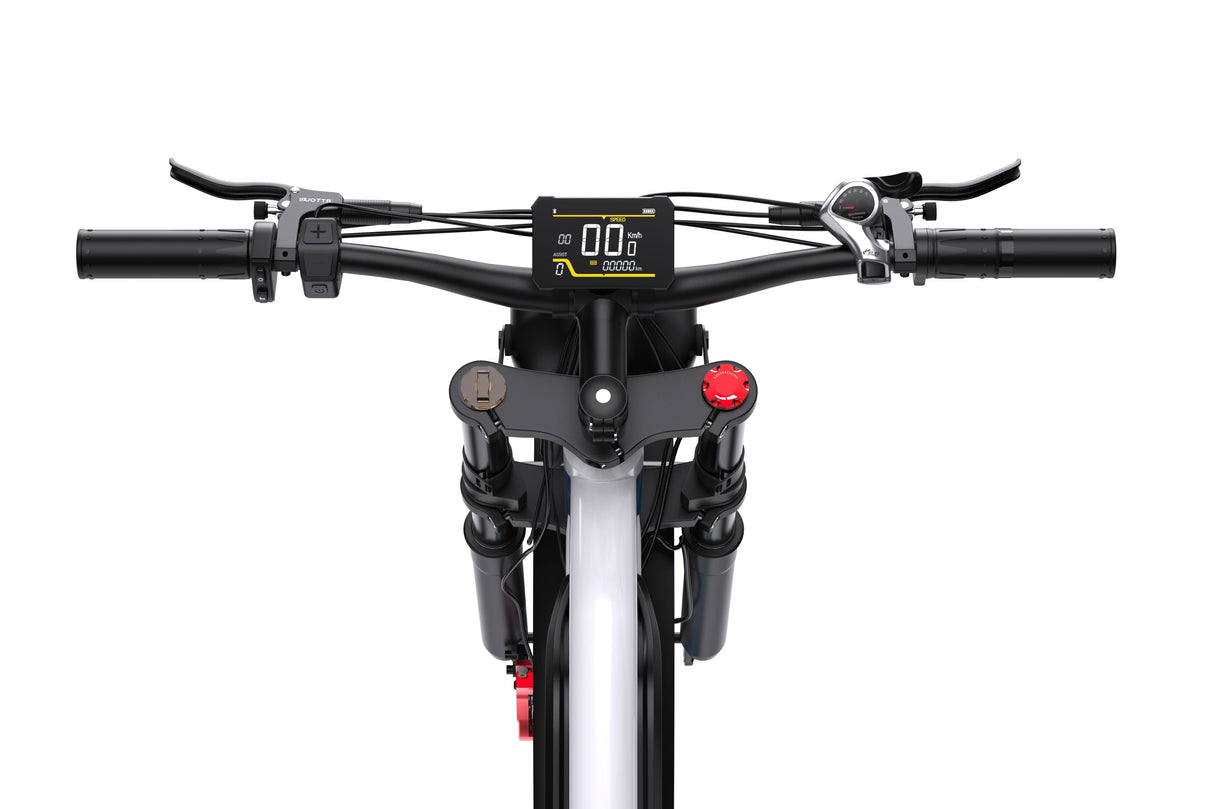

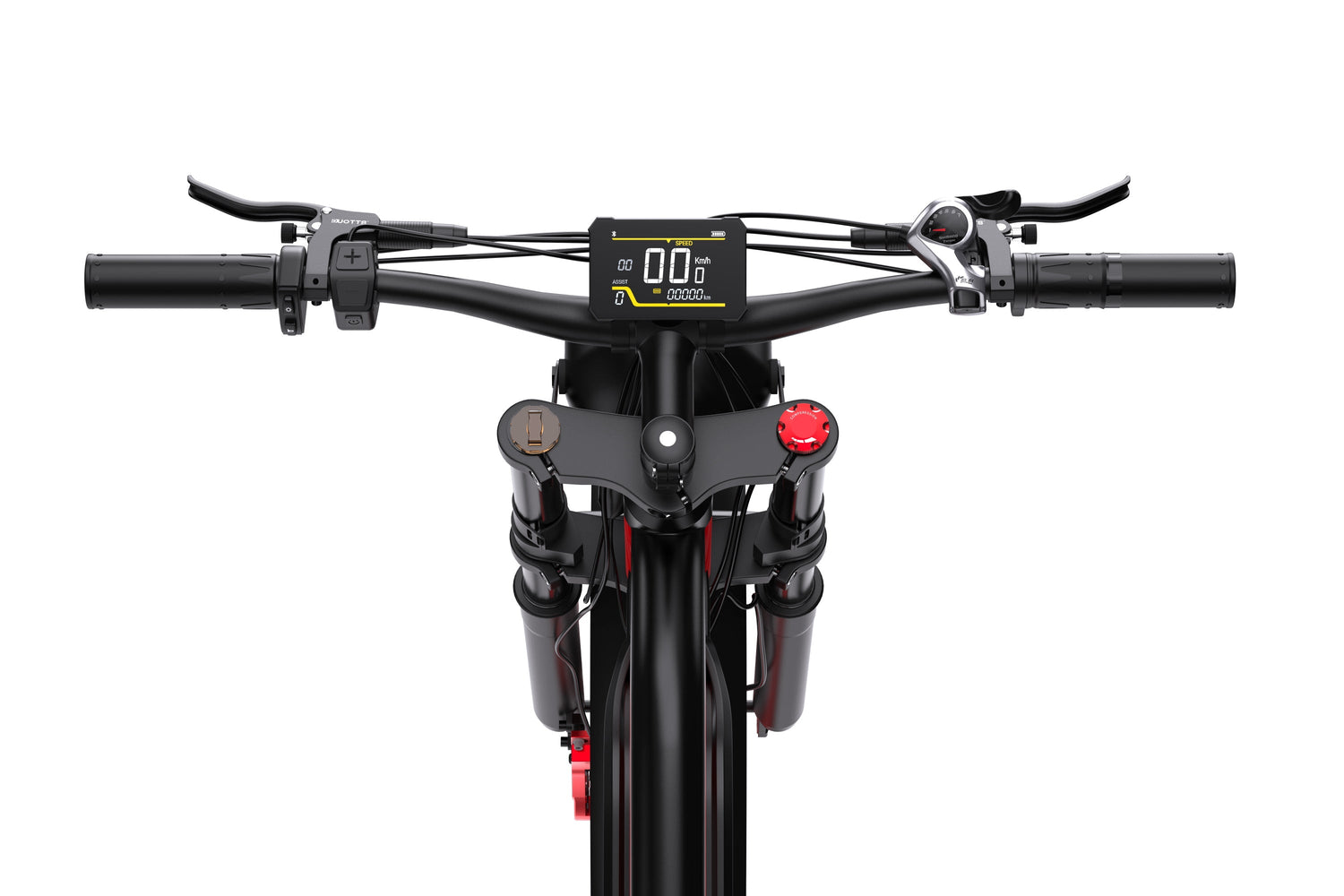

Multi-functional rider control panel

The N26 E-Bike puts control in the rider's hands with an electric half-twist throttle, Shimano gearing, a mobile phone charging port，and a toggle button for switching drive modes. With a high-definition display screen, you can effortlessly monitor the vehicle's status while enjoying a safer, more convenient, and more enjoyable ride.

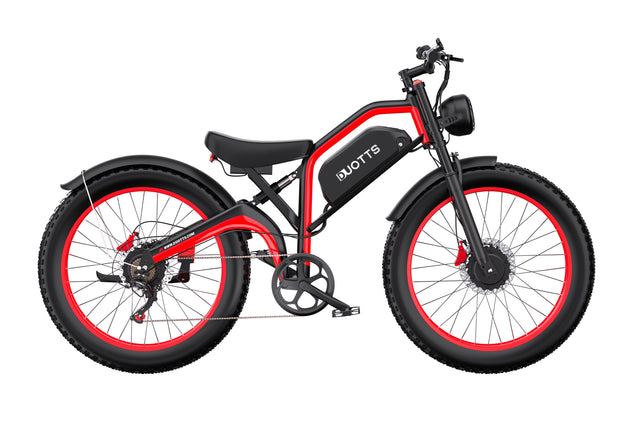

Equipped with full suspension

The front fork and rear shock absorber create a full suspension system. Designed for cycling challenges, it ensures smooth rides on rough terrains, enhances bike control, and reduces rider pressure. Easily navigate city streets, rocky trails, and unexpected bumps with confidence.

Safe hydraulic disc brakes

The advanced hydraulic disc brakes, equipped with a large 180mm diameter rotor, provide reliable braking power, ensuring enhanced safety and control during your rides.

Product details

Basic geometry

Component geometry

Recommended Height170-200cm

Load CapacityMax 150kg

Bicycle Weight44kg

A. Seat Height (Maximum) 87cmB. Wheelbase 123cmC. Seat Stay 37cmD. Seat Tube 43cmE. Top Tube 41cmF. Front Fork 71cmG. Wheel Height 73cmH. Bike Height 120cmI. Bike Length 195cm

What’s Inside The Box

Tools

No.4 Hex Key

No.5 Hex Key

Phillips Head Screwdriver

No.10&12 Wrench

No.13&15 Wrench

Electronic

Charger

Accessories

Bicycle Pedals

Pump

Bike Manual
