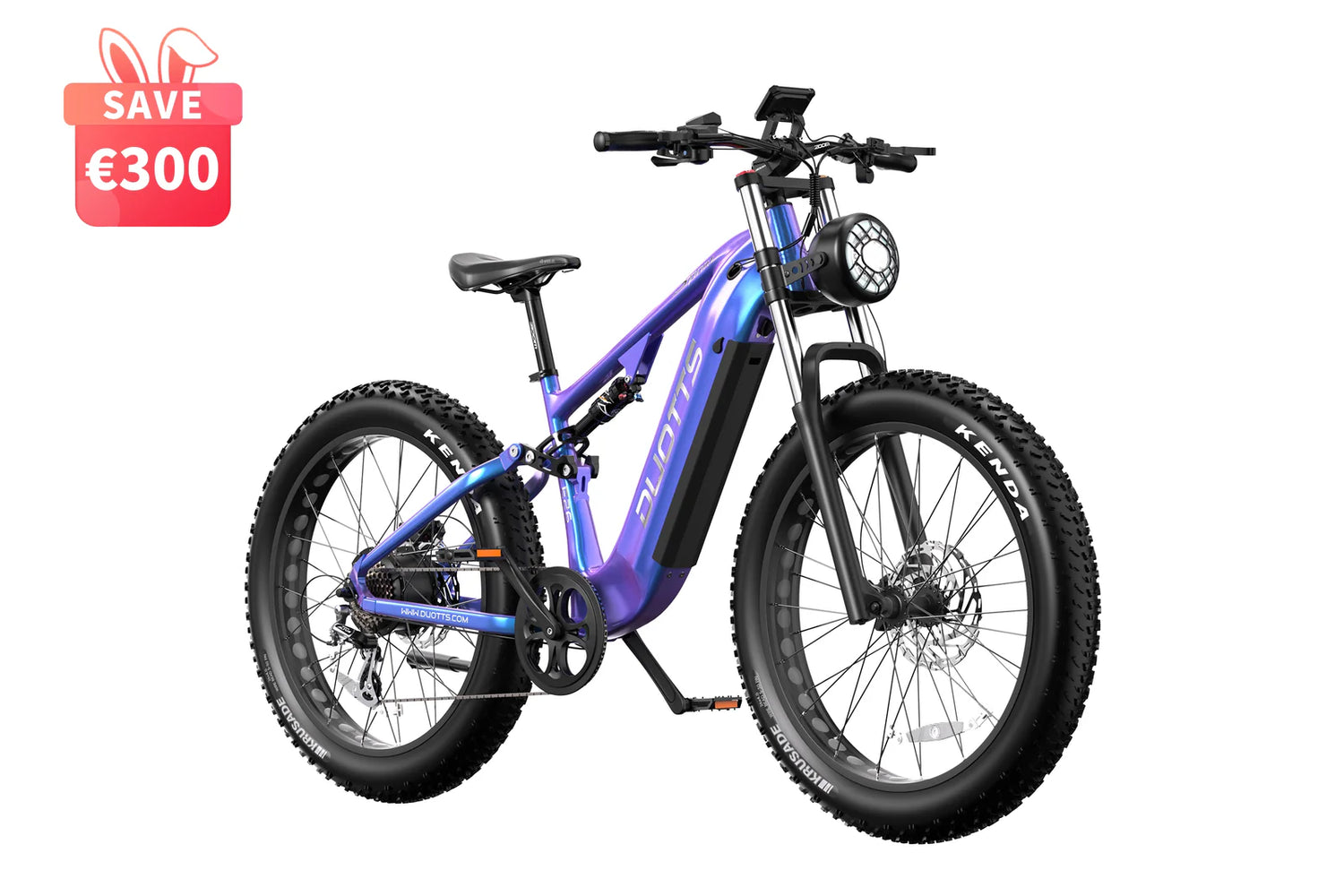

DUOTTS E26 Electric Bike

Description

FrameFull Aluminum Alloy

BrakeLeft and right power-cut brake levers, front and rear hydraulic brakes, disc diameter: 203mm

Front forkFull aluminum dual-crown suspension fork, fork travel: 100mm

RangePure electric mode range: approximately 40-60 km, pedal-assist mode range: approximately 100-120 km.

Speed25 km/h, speed limiter can be disabled.
To disable the speed limiter: Set the parameter value of p08, adjustable range 1-100. If set to 25 or below, the speed remains at 25 km/h.
If set between 25-55, the maximum speed will correspond to the set value (e.g., setting it to 34 will result in a maximum speed of 34 km/h).
If set above 55, the maximum speed will be 55 km/h.

Net WeightMaterial of 37kg(All specified weight figures have a tolerance of +/ -3%-5%)

CertificateCE certification

Product size2100*710*1130mm (handlebar length: 71cm)

Package size1600*320*880mm

Tyre Size26*4.0 inch tires

Assist Intelligent0-5 level pedal assist

Angle of climbMaximum climbing angle: 30°(Suitable for moderate urban slopes)

Rider Heights170-200cm

Weight Capacity150kg

Waterproof classIPX4 rating(Resistant to small rain or water splashes, but cannot be directly washed or ridden in heavy rain)

Working Temperature-10~40℃(Driving in severe weather conditions is not recommended)

Package contentFull vehicle, accessory pack (includes a pair of handle grips, tool kit, zip ties, pedals, charger, user manual, DNM suspension manual), fenders

TransmissionShimano, 8 speed

SuspensionFront and Rear Suspension

BrakesFront and Rear Hydraulic Brakes

Brake discDisc diameter: 203MM, thickness: 2.3MM

WheelsSpokes with Double-layer Aluminum Rims for Front and Rear Wheels，Centered circular holes in the rims

TiresKenda K1188 Tires, 26”*4.0

ForkPerfect Suspension Fork

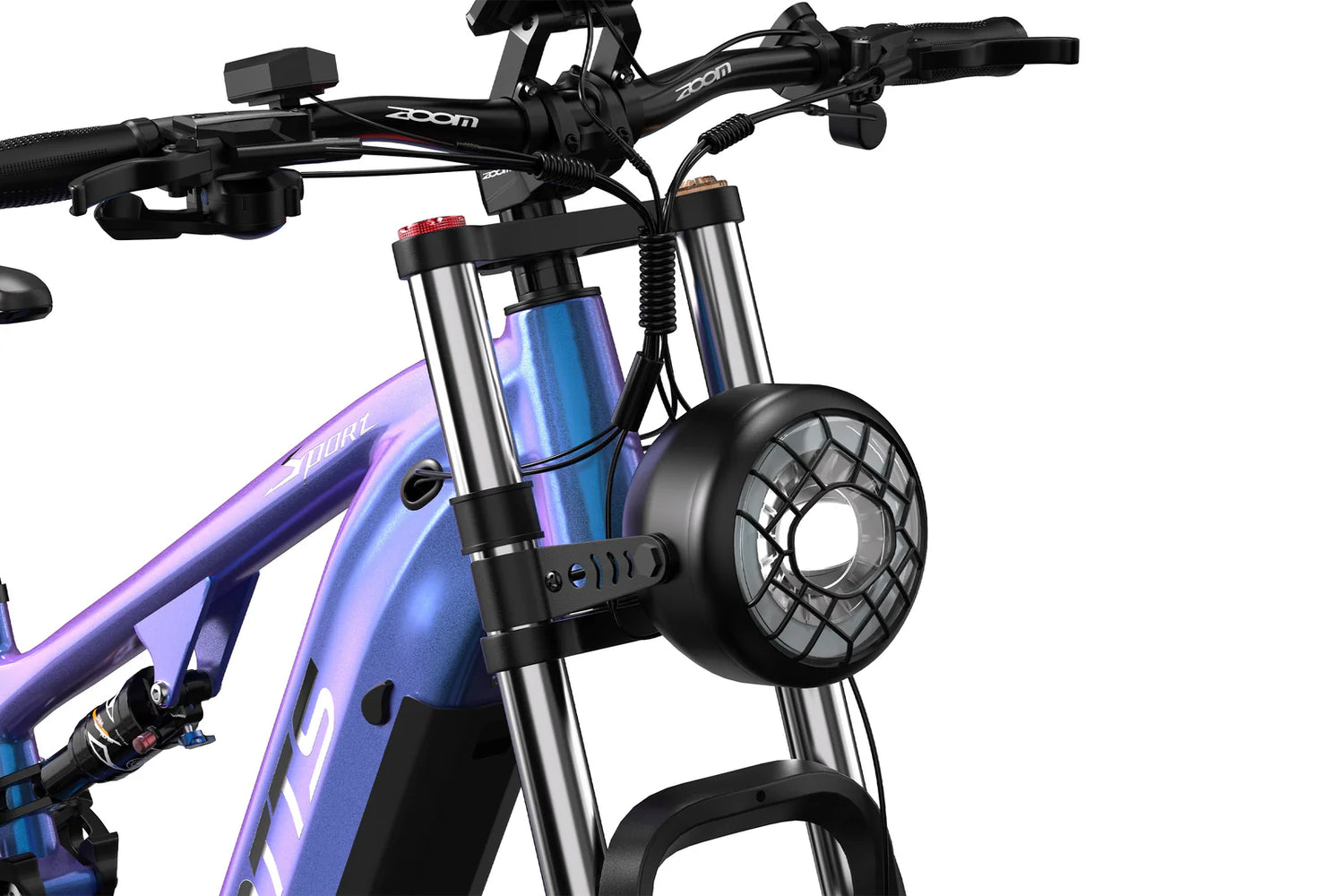

HeadlightEquipped with ED Front Headlight

Tail LightNo taillight

Chain RingKMC Z8

PedalsAluminum Alloy with Standard Reflectors

SaddleVL-3639AF Saddle

Seat tubeSP601 Seatpost

FendersPlastic 26-inch Snow Bike Use Fender

Rear CarrierNo

Motor48V750W

Torque80 NM

Battery48V 20AH

Battery Charger54.6V*3A

Charger Time6-8 Hours

SensorTorque sensor compatible, including left and right cups and locking ring

ThrottleOptional electric half-twist throttle

DisplayTW35 Horizontal Display

Smart ConnectSupports Bluetooth connection to the DUOTTS app

750 W

Bafang Motor

100-120 KM

Extended Range

80Nm

Max Torque

48V 20AH

Samsung battery cell

25 KM/H

Top Speed

150 KG

Max Load

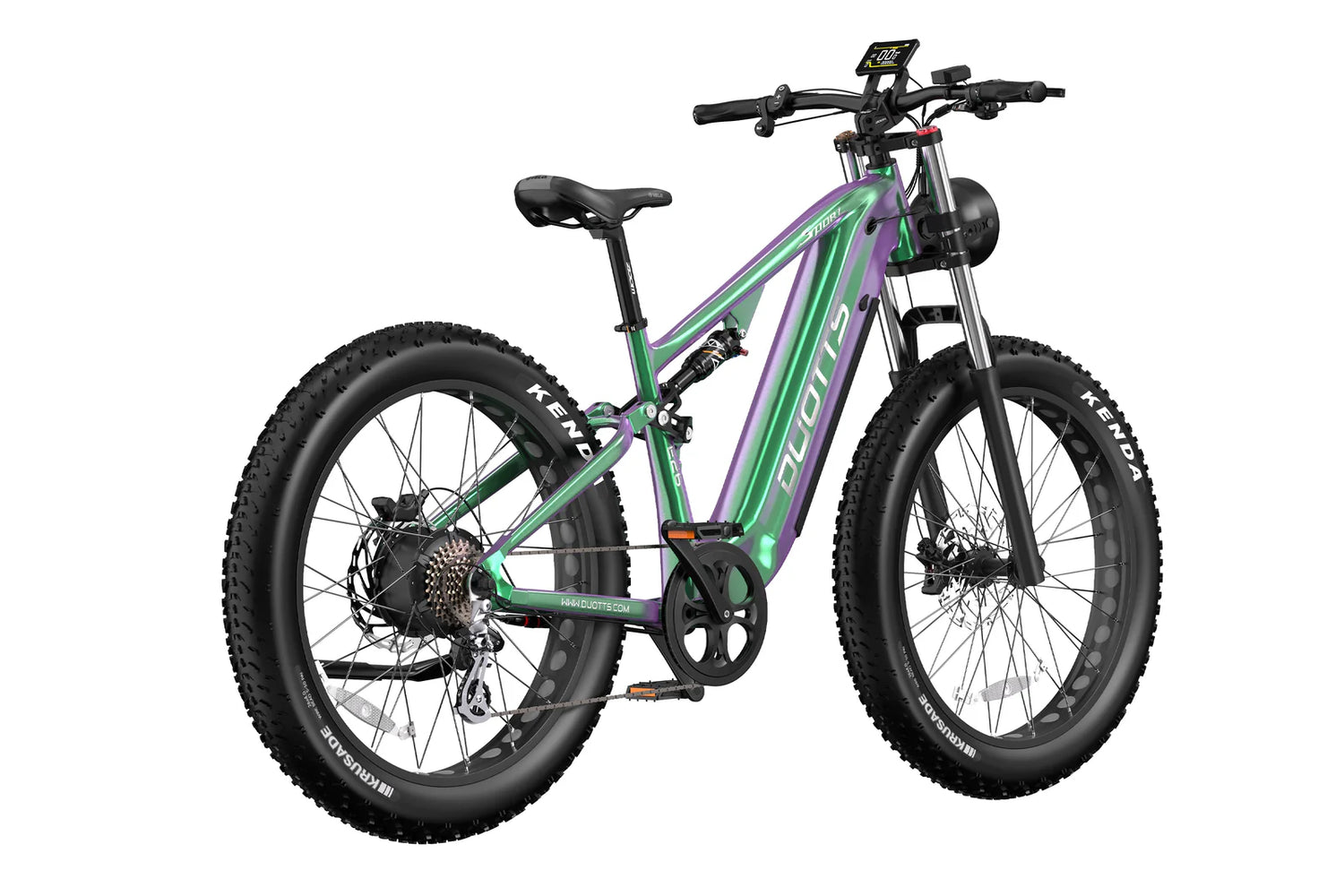

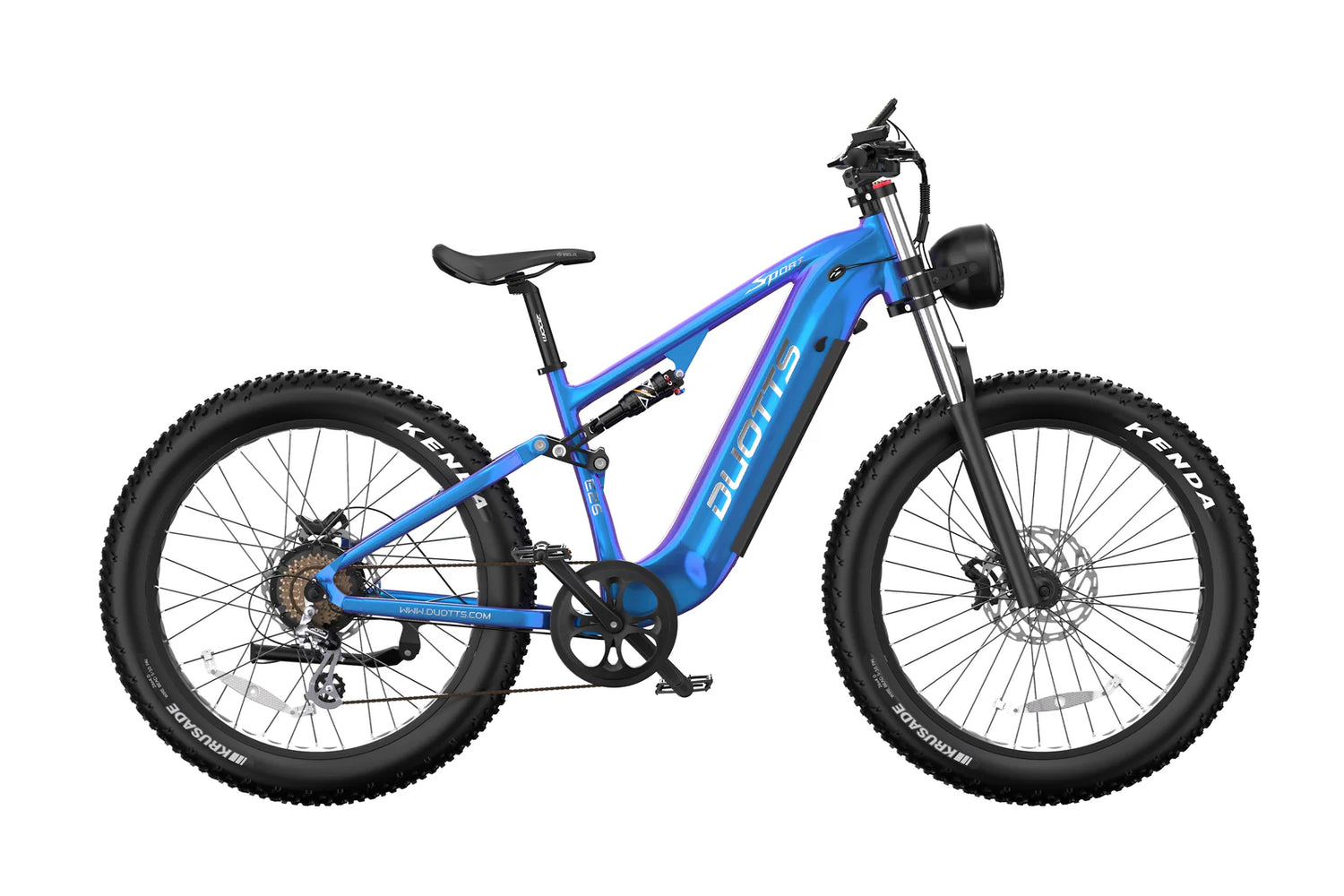

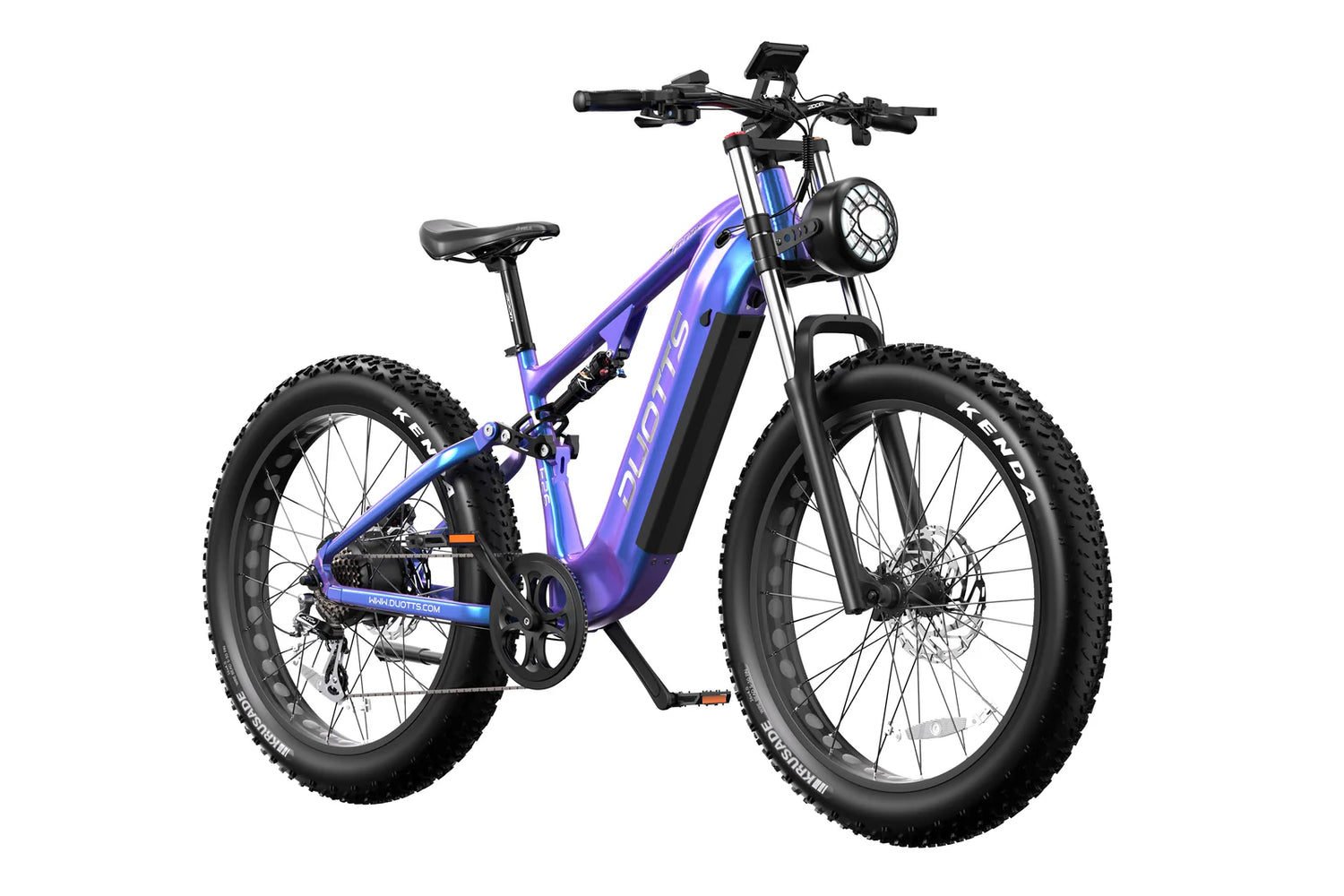

Dynamic Color-Changing Design: The Future of E-MTBs

The E26 electric mountain bike for sale features a lightweight aluminum alloy frame and a unique color-changing finish that shifts between vibrant blue, green, and purple in sunlight. This innovative design enhances the bicycle with electric assist's modern, dynamic look, ensuring it stands out on any terrain.

Powerful Performance: 80NM Torque & Torque Sensor E-MTB

The Duotts electric mountain bike for sale features an advanced torque sensor for smooth, responsive power and 80 Nm of torque for tackling steep 30° climbs. Perfect for commuting and rugged trails, this torque sensor ebike ensures rapid acceleration and outstanding performance. Experience freedom and excitement with this versatile bicycle with electric assist!

TEKTRO Four-Piston Hydraulic Brakes

Equipped with TEKTRO's four-piston hydraulic brake system and 203MM x 2.3MM rotors, this electric bike delivers exceptional braking power. Whether descending steep hills or making quick stops, you'll experience precise control and enhanced safety. The four-piston design ensures smooth, rapid stops with minimal stopping distance, making it perfect for city commutes and off-road adventures alike.

DNM Air Shock Absorber

The DNM rear soft-tail system effectively absorbs vibrations, greatly improving riding stability. Paired with the front fork, it provides extra support on rugged terrain and descents, ensuring control and safety. The lightweight, sturdy all-aluminum front fork features a 100mm travel, absorbing impacts for a smooth ride.

Bafang Motor and Songzheng Controller

This electric bike features a Bafang 26-inch brushless geared motor with a powerful 750W output, delivering strong performance on any terrain. The Songzheng controller intelligently manages motor operation and power output, allowing you to easily tackle any riding challenge.

KENDA 26×4.0-Inch Tire

Its exceptional anti-slip and shock-absorbing features allow you to enjoy unparalleled comfort and stability on various road conditions. The larger contact area provides better grip, enabling you to ride effortlessly on snow, sand, and rugged trails.

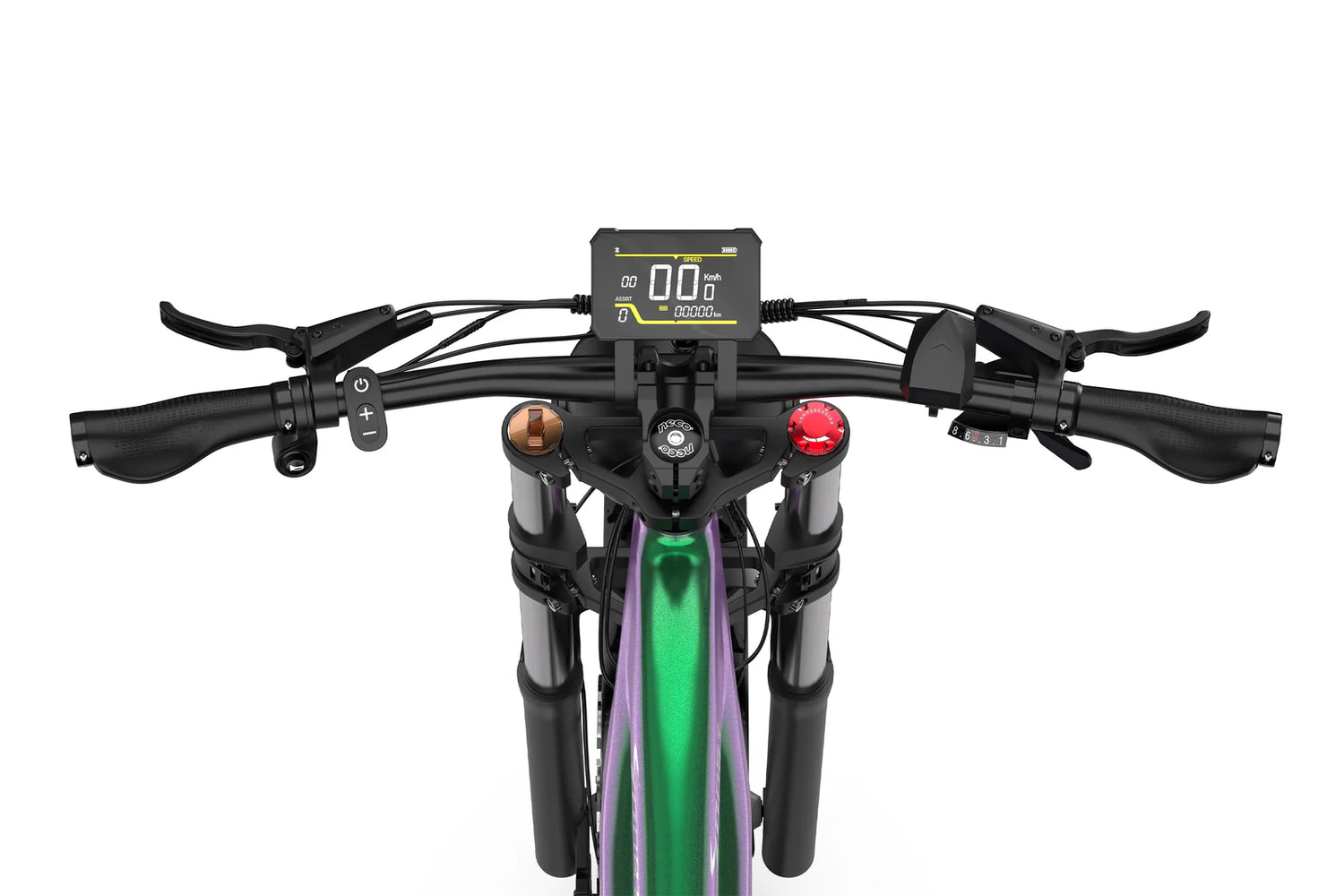

Shimano 8-Speed Gear System and Smart Connectivity

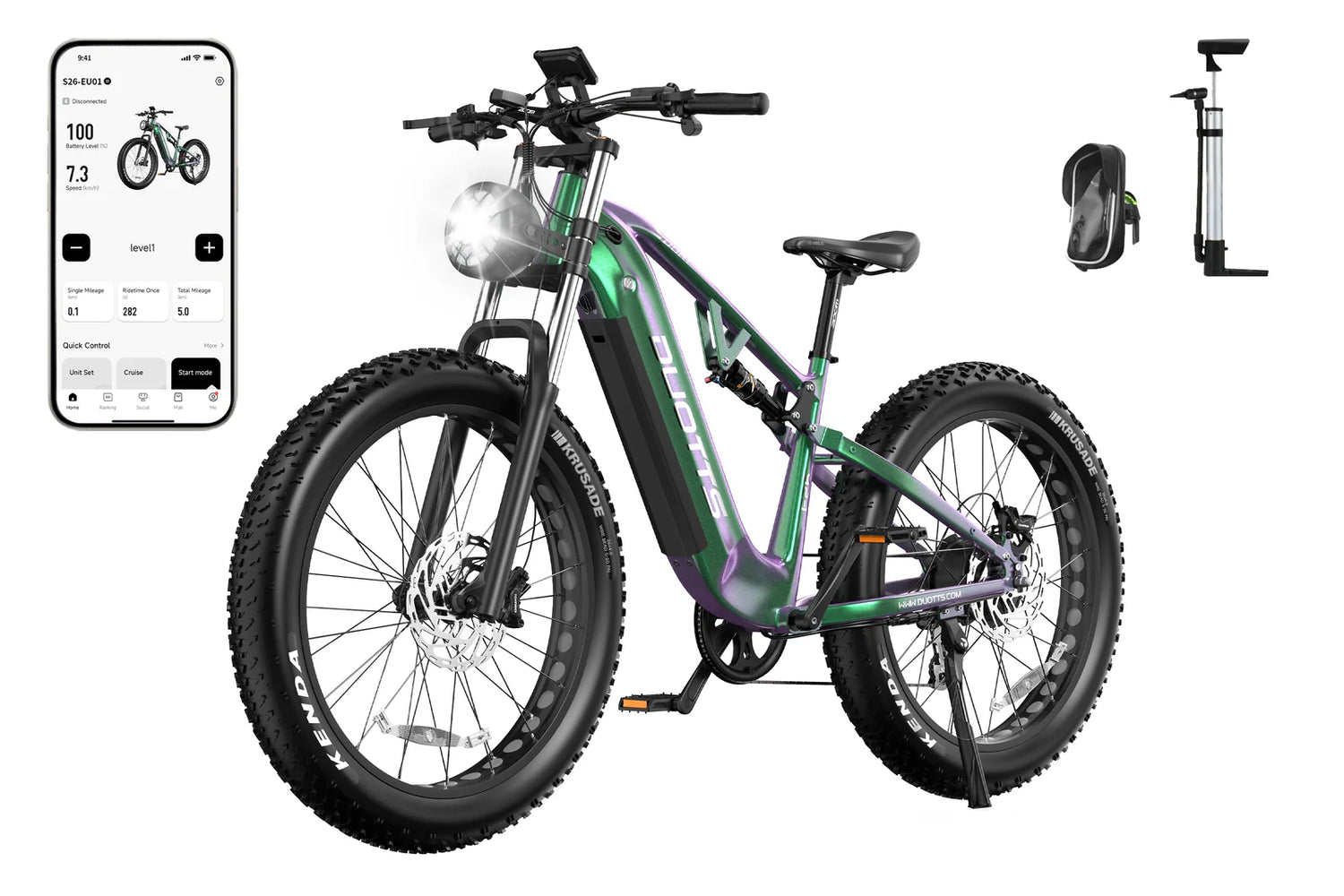

This electric bike features a SHIMANO 8-speed gear system, making it easy to find the perfect speed for city commutes or country rides. The display shows clear speed and gear information, keeping you in control. With Bluetooth connectivity to the DUOTTS APP, you can monitor your riding data and battery status in real time.

48V 20Ah Samsung Battery

This electric bike features a 48V 20Ah Samsung battery, offering a range of 40-60 kilometers in pure electric mode and 100-120 kilometers in assist mode. Whether for short commutes or long adventures, you can enjoy the thrill of the ride on various terrains.
